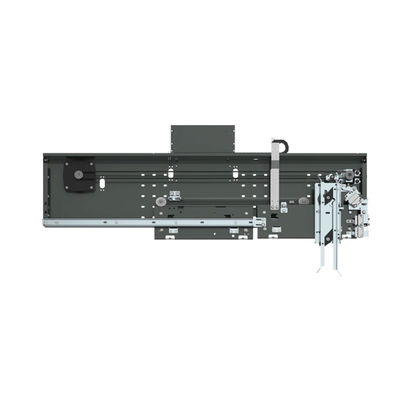

700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock

700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock
700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock

Imagem Grande :  700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock

Detalhes do produto:
Lugar de origem: CHINA
Marca: SUNNY
Certificação: CE,ISO9001
Número do modelo: SN-J4210-T2
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 pcs
Preço: $500~1200
Detalhes da embalagem: Em Caixa de Cartão
Tempo de entrega: 7 ~ 15 dias
Termos de pagamento: T/T, L/C, Western Union
Habilidade da fonte: 5000pcs/mês

700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock

descrição
Nome: Porta de carro lateral do painel da abertura dois JJ: 700~1300
Usado: Peças do carro Pl: 2.000 ~ 2.500
Motor: 2,7NM/57W Tipo: Peças do elevador
Nome do produto: Operador da porta do elevador Aplicável: Equipamento de elevador
Modelo: Porta de carro lateral do painel da abertura dois Produto: Porta de carro lateral do painel da abertura dois

700~1300mm JJ elevator Side Opening Two Panel Car Door With Car Door Lock



PL 700~1300
HL 2000~2500
Motor 2.7NM/57W
Ip Rating IP2X
Noise Level ≤58dB
Door Vane Integrated with car door lock
Guide Rail Type Double solid guide rails
Door Panel ≥1.0mm door plate/thickness 32mm
Max.Drag 250kg
Installation Method Car top/Lintel
Car Sill Aluminum sill 96mm







PL 700 800 900 1000 1100 1200 1300
A1 1163 1288 1438 1588 1738 1888 2038
B1 225 275 325 375 425 475 525



700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 0





700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 1



700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 2



700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 3



700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 4700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 5700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 6



700~1300mm JJ Elevator Side Opening Two Panel Car Door With Car Door Lock 7



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
