Detalhes do produto:
|
| Nome: | display multimídia de elevador | Usado: | Peças do elevador |
|---|---|---|---|
| Original: | Sim | Aplicativo: | Elevador |
| Nome do produto: | display multimídia de elevador | Tempo de garantia: | Um ano |
| Tipo de negócio: | Fabricante | Tamanho: | 4,3 polegadas |
| tipo: | display multimídia de elevador | Resolução: | 480px × 272px |
| Tensão de alimentação: | 18V CC ~ 36V CC | Área de exibição ativa: | 53,9 mm (L) × 95 mm (A) |
| Destacar: | Elevator LCD display with 480x272 resolution,Elevator multimedia display MCTC-HCB-T640/S,Elevator LCD screen with warranty |
||

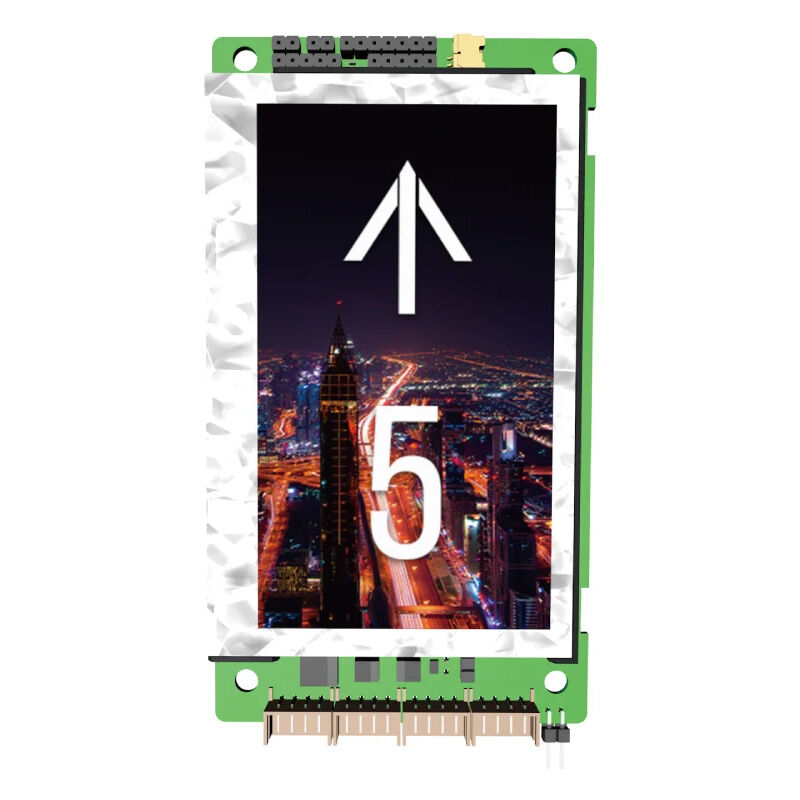

Elevator Multimedia Display MCTC-HCB-T640/S With 480px × 272px Resolution
This product is a 4.3-inch TFT LCD photo display.
It presents elevator operation modes, floor numbers, special functions, and other information to passengers in a variety of styles through vivid color images, adding a sense of sophistication to the building.
| Parameter Item | Specification | Parameter Item | Specification |
|---|---|---|---|
| Screen Size | 4.3 inches | Resolution | 480px × 272px |
| Viewing Angle | 70(θL)-70(θR)-60(θT)-70(θB) | LCD Brightness | 250cd/m² |
| Active Display Area | 53.9mm (W) × 95mm (H) | LCD Type | RGB |
| Power Supply Voltage | 18V DC ~ 36V DC | Rated / Max Power Consumption | 4W / 5W |
| Operating Environment | -20℃ ~ +70℃; 10% RH ~ 90% RH | Storage Environment | -30℃ ~ +80℃; 10% RH ~ 90% RH |
![]()
![]()
![]()
![]()
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
